PWGS Series – Pressure Wet Gauge Stand-Alone

PWGS Series – Pressure Wet Gauge Stand-Alone

Price range: $615.68 through $648.08 CAD

Key Features:

  • Pressure ranges from -14.7 to 10,000 PSIG (-101.4 to 68,947.6 kPa)
  • 1/4” NPT pressure connection
  • NIST-traceable calibration for assured measurement accuracy
  • Weather-resistant design for harsh environments
  • Fast response time for dynamic applications
  • Capacitance-based sensing element
  • Accuracy up to ±0.5% FSO
  • Output options: DC input, current 4-20mA, or voltage 0-5V, 0-10V
  • Temperature compensation range: -20°C to 80°C (-4°F to 176°F)
  • Operating temperature range: -40°C to 85°C (-40°F to 185°F)
  • Constructed from 316L Stainless Steel for superior corrosion resistance

Certifications & Compliance:

  • CE certified
  • RoHS compliant
  • Enhanced EMC protection for noise immunity
  • Resistant to shock and vibration

Connectivity Options:

  • Standard 3m (10 ft) FT6 cable
  • Optional conduit connection for electrical termination

Price range: $615.68 through $648.08 CAD

Categories: ,

Product Description

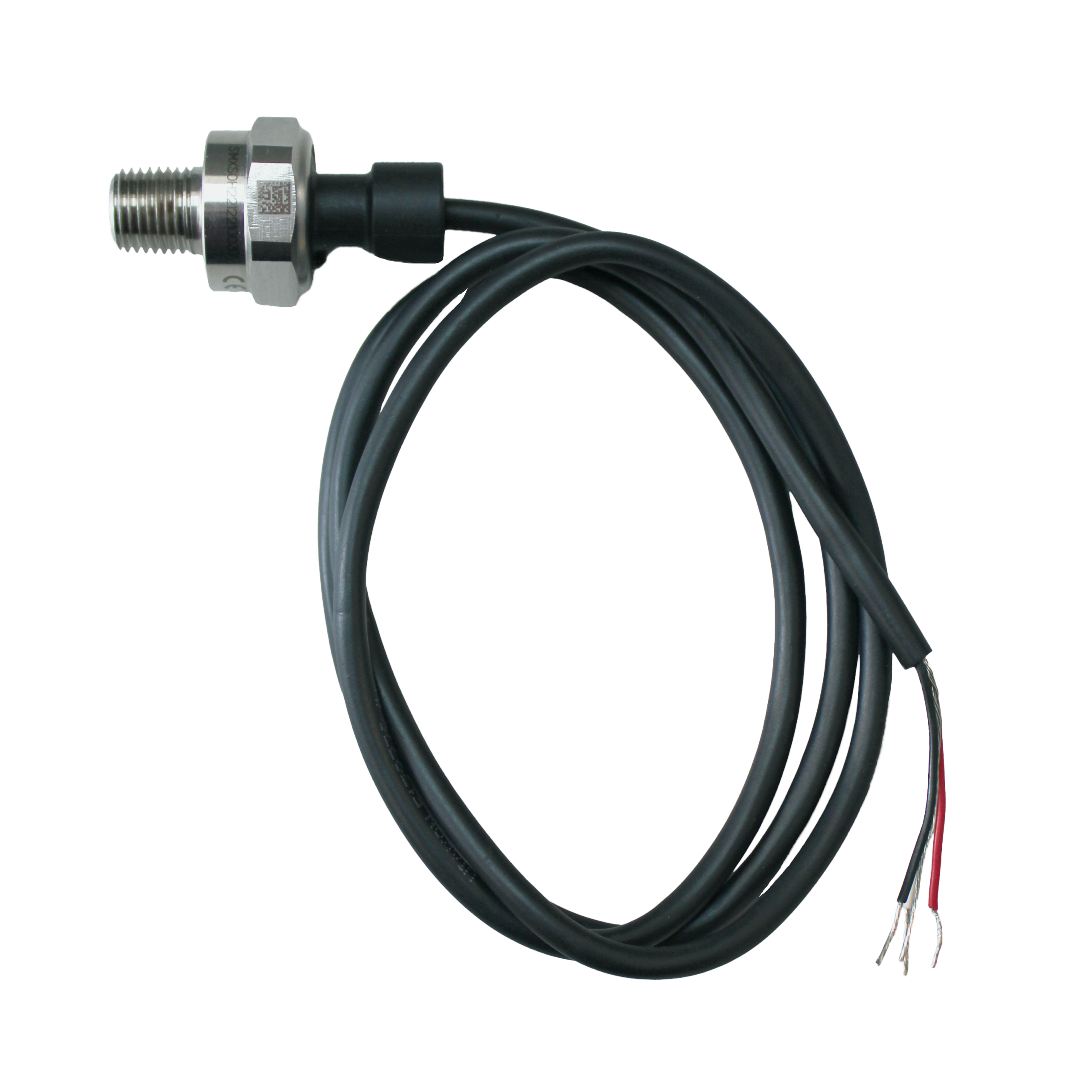

The PWGS (Pressure Wet Gauge Stand-Alone) is a compact and highly reliable pressure transmitter built on a proven polysilicon thin-film technology. It features a robust, seal-free stainless steel measuring cell designed for precise measurement of relative pressures up to 10,000 psi. With exceptional burst pressure resistance and long-term stability, the PWGS is ideal for demanding environments.

Engineered for compatibility with liquids and gases—including all common refrigerants and ammonia—the PWGS is well-suited for a wide range of applications, from industrial processes and HVAC systems to railway components.

pdf-icon  Submittal

pdf-icon Installation Instructions

word-icon Engineering Specification

pdf-icon Declaration of Conformity

Product Search Options

Name:

PWGS0105C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone,  -14.7 psi - 15 psi, 0-5VDC Output, Conduit connection

PWGS0605C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter , Gauge Stand-alone, 0-15 psi, 0-5VDC Output, Conduit connection

PWGS0705C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-25psi, 0-5VDC Output, Conduit connection

PWGS0805C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-50psi, 0-5VDC Output, Conduit connection

PWGS0905C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter , Gauge Stand-alone, 0-100psi, 0-5VDC Output, Conduit connection

PWGS1005C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-150psi, 0-5VDC Output, Conduit connection

PWGS1105C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-200psi, 0-5VDC Output, Conduit connection

PWGS1205C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-250psi, 0-5VDC Output, Conduit connection

PWGS1305C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-300psi, 0-5VDC Output, Conduit connection

PWGS1405C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-500psi, 0-5VDC Output, Conduit connection

PWGS1505C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-1000psi, 0-5VDC Output, Conduit connection

PWGS1605C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-5000psi, 0-5VDC Output, Conduit connection

PWGS1705C00

List Price: $769.60
Web Price: $615.68 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-10000psi, 0-5VDC Output, Conduit connection

PWGS0605S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-15 psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS0705S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-25psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS0805S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-50psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS0905S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-100psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1005S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-150psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1105S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-200psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1205S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-250psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1305S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-300psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1405S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-500psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1505S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-1000psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1605S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-5000psi, 0-5VDC Output, Standard FT6, 3m (10ft)

PWGS1705S03

List Price: $810.10
Web Price: $648.08 (CAD)
Wet Pressure Transmitter, Gauge Stand-alone, 0-10000psi, 0-5VDC Output, Standard FT6, 3m (10ft)
